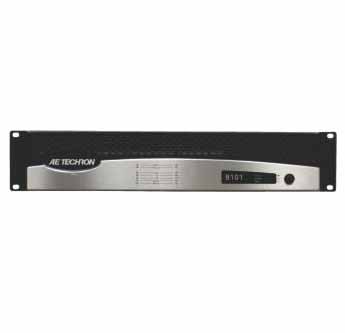

〖8101电源放大器〗



    双通道,交流耦合电源放大器,脉冲或持续负荷工作

    先进的开关模式设计,以达到更小的噪音和畸变,更高的功率密度。双通道输出,交流耦合电压控制模式,最适合电抗性负载。8101能提供最大16A电流和235Vrms连续输出,带宽范围在10 Hz至20 KHz。

Dual-Channel, AC-Coupled Power Supply Amplifier for Pulse or Continuous Duty Operation

Features

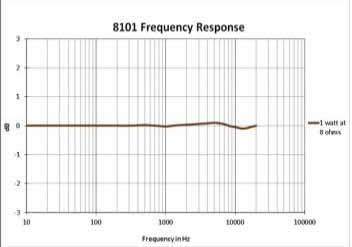

The 8101 power supply amplifier features an advanced switch-mode design that results in low noise and distortion, and high power density. It is configured as a dual-channel, AC-coupled, controlled voltage amplifier ideal for reactive loads. The 8101 can provide up to 16 Arms and 235 Vrms continuous output (bridge-mono mode). It offers a continuous, full-power frequency bandwidth of 10 Hz to 20 kHz.
The 8101 also features an integrated switching power supply that reduces weight and allows the unit to fit a standard 2U rack space. The 8101 operates from single-phase, 120-volt AC mains (230 VAC version available).
